These files allow you to create:

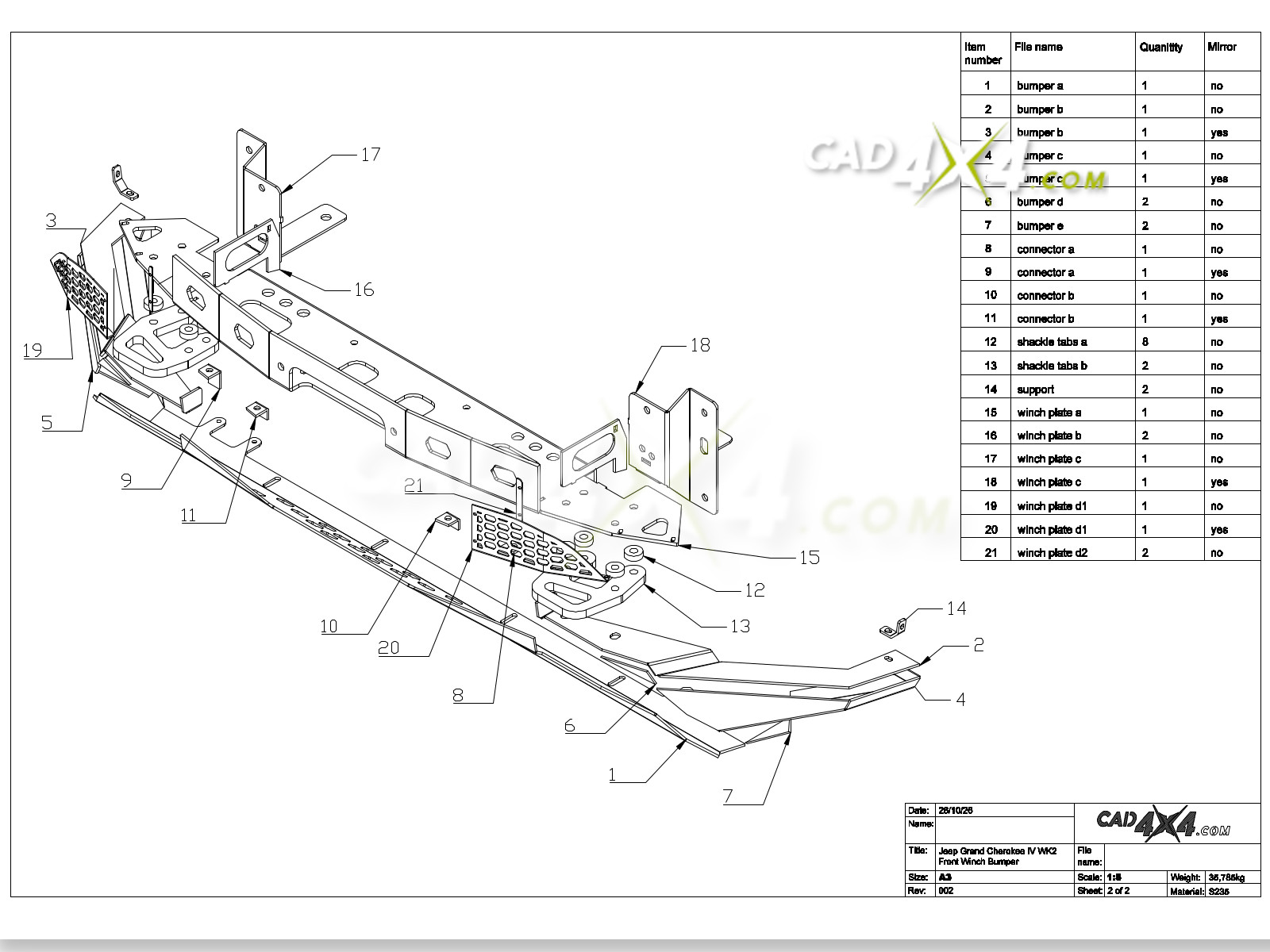

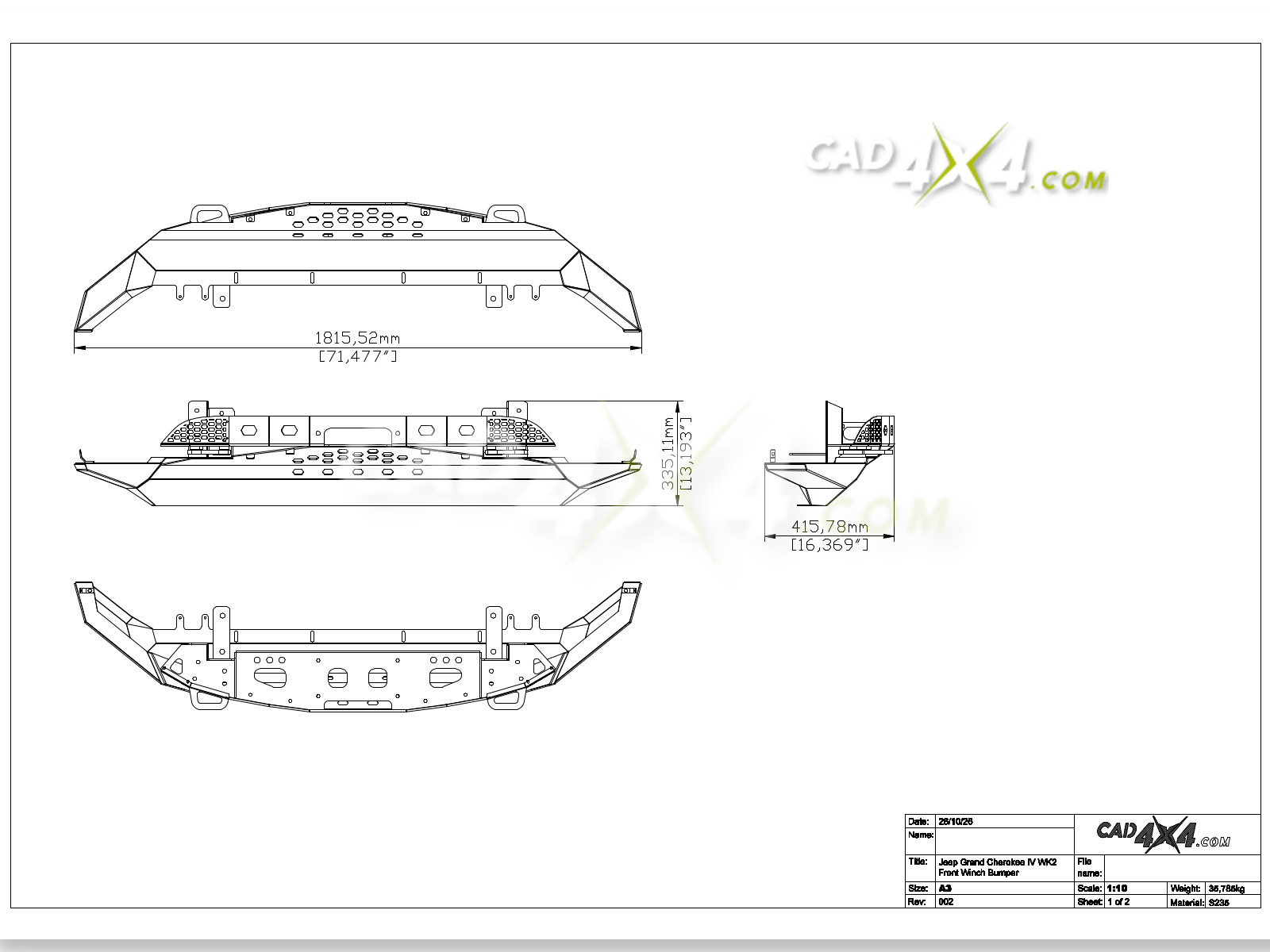

Jeep Grand Cherokee IV WK2 front winch bumper /all engines/
- made to fit up to 12500 lbs winches
Main materials thickness:
- bumper 4mm
- winch plate 6mm
- more thinkness data inside the file
What ziped files you’ll recive:
- cad files: 2D and 3D (step & dxf)
- pdf files (bending angles, bolts, filets etc., dimensions also given in inches)
- jpg files
- we do not sell the scan shown in the picture
- size of the zip file is 12387KB – rev 001 – (dwg, dxf; without step files)
- size of the zip file is 10,7MB – rev 002 – (step files)
Estimated weight:
- 36 kg
Required skills:
- welding
- grinding
Required changes in the car:
- cutting of the piece of bumper
- cutting two small sheets
- smaller cooler relocation
Rcommendations:
- the bumper should initially be built on the car
- designed on a car without radar
Released:
- October 28, 2026 (rev. 002)
We also sell finished products:
- Are you interested in purchasing? Ask for the price and shipping costs.
Jeep Grand Cherokee WK2 front winch bumper
$ 39
These files allow you to create: Jeep Grand Cherokee IV WK2 front winch bumper /all engines/ made to fit up to 12500 lbs winches Main materials […]
